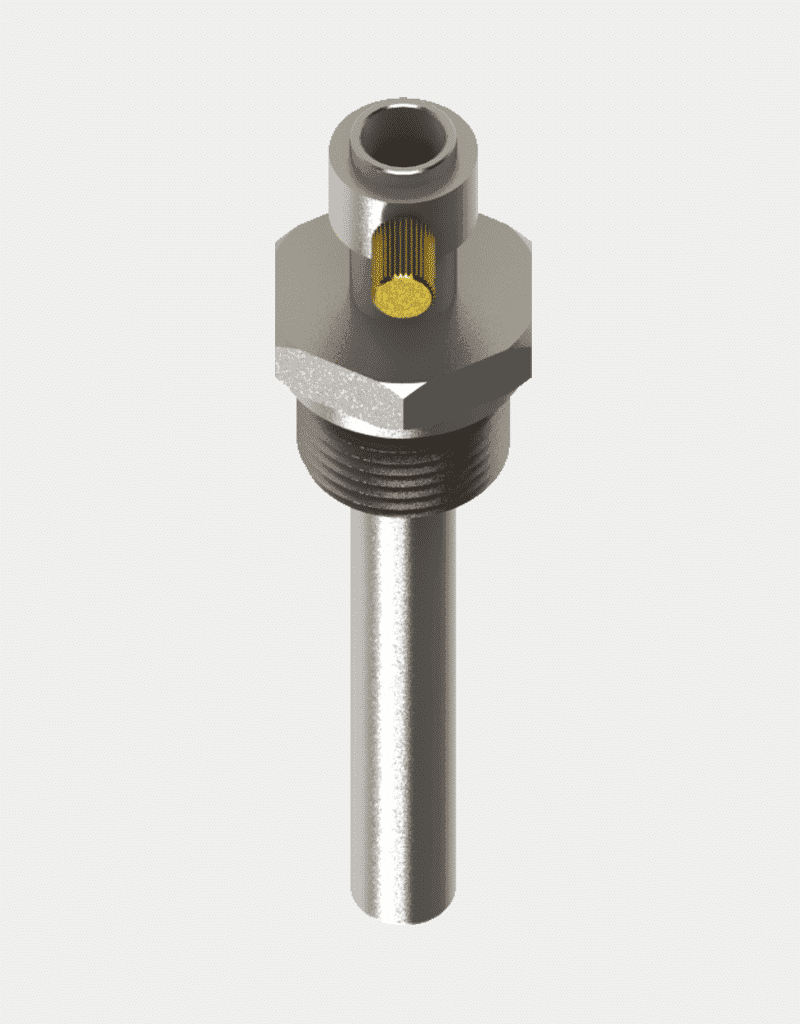

Protective Sleeves GZ-001

Price
308 UAH
Availability
In stock
Sleeves, bosses, fittings

Protective sleeves (mounting, thermometer) GZ-001 are designed for mounting resistance thermometers (RT), thermoelectric converters (TC) (thermocouples), glass thermometers, bimetallic sensors, and pressure gauges. Protective sleeves protect these instruments from mechanical and chemical effects of the working environment and increased dynamic loads. Mounting temperature sensors with GZ-001 sleeves significantly extends their service life. Protective thermometer sleeves can be installed... Read more Protective Sleeves GZ-001

Back to catalog

Specifications

Description

Protective sleeves (mounting, thermometer) GZ-001 are designed for mounting resistance thermometers (RT), thermoelectric converters (TC) (thermocouples), glass thermometers, bimetallic sensors, and pressure gauges. Protective sleeves protect these instruments from mechanical and chemical influences of the working environment and increased dynamic loads.

Mounting temperature sensors using GZ-001 sleeves significantly extends the service life of these sensors. Protective thermometer sleeves can be installed in pressure vessels, steam boilers, pipelines, reservoirs, and other objects. Sleeve installation is performed using threaded or welded connections.

Thermometer sleeves are manufactured with mounting threads: metric according to ISO 724, cylindrical pipe threads BSPP / ISO 228-1, and tapered inch threads NPT / ANSI-ASME B1.20.1. Upon customer's request, mounting threads can be made according to other standards.

Sleeves GZ-001 are designed for temperature sensors models 001 and 102.

Protective sleeves (mounting, thermometer) GZ-001 are made of steel grade 12X18H10T according to EN 10088. On customer's request, manufacturing from other steel grades is possible.

AISI 321 (12X18H10T, 08X18H10T) — heat-resistant, corrosion-resistant austenitic steel. Has high strength and durability. Suitable for temperatures up to 600 °C, and in highly aggressive environments up to 350 °C.
AISI 304 (08X18H10) — heat-resistant, corrosion-resistant austenitic steel. Used at temperatures up to 400 °C in moderately aggressive environments.
AISI 316L (03X17H14M3) — corrosion-resistant austenitic steel. Used at temperatures up to 450 °C in most aggressive environments.
AISI 316Ti (10X17H13M2T) — corrosion-resistant austenitic steel. Used at temperatures up to 600 °C in highly aggressive environments.
AISI 430 (12X17) — heat-resistant, corrosion-resistant ferritic steel. Used at temperatures up to 400 °C in weakly aggressive environments.
12X1MF — heat-resistant, resistant to prolonged high temperatures pearlitic steel. Used at temperatures up to 600 °C.

GZ-001 mounting sleeves must be operated at flow velocities and pressures not exceeding the values specified in tables for specific sleeve modifications. Maximum flow velocity and nominal pressure of the working environment are determined based on ensuring the static strength of the sleeve.

All thermometer sleeves of all modifications are hermetic. They undergo acceptance tests with test pressure Ppr and must be operated at working pressure Pr in accordance with GOST 3634-79.

Conditional designation of protective sleeves (mounting, thermometer) GZ-001 according to TU U.26.5-32195027-008:2016:

REGMIK DPP-GZ-001

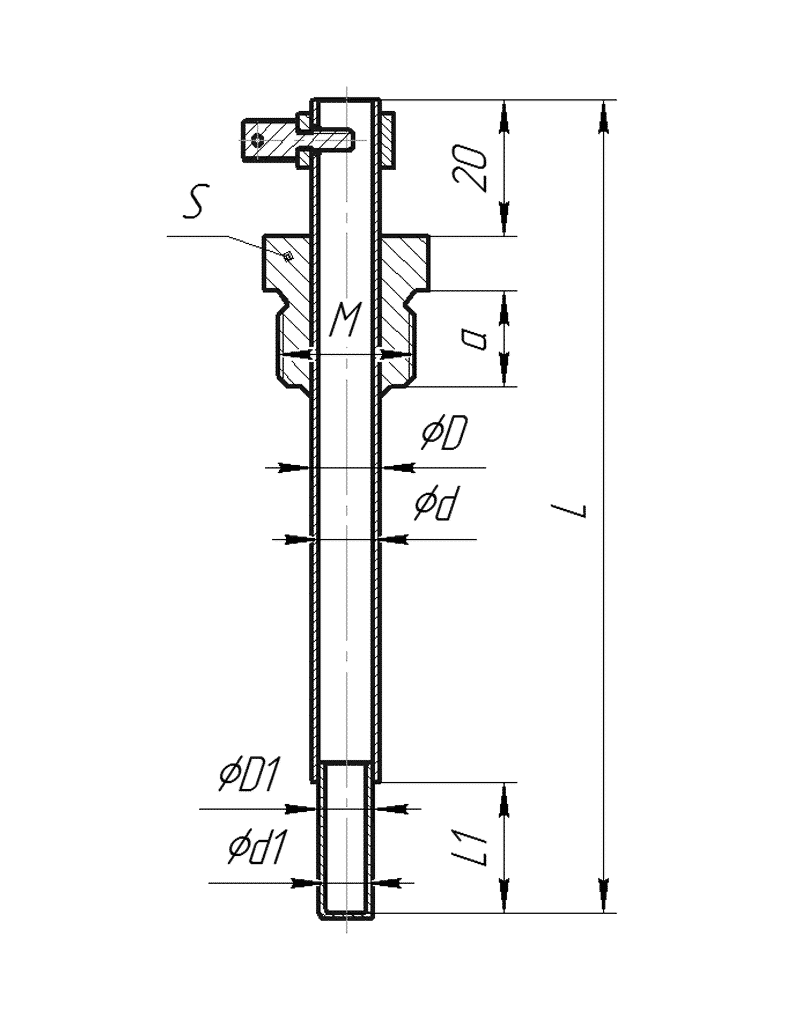

D, D1 – outer diameter of mounting part, mm
d, d1 – inner diameter of mounting part, mm
L, L1 – length of mounting part, mm
M – external thread type or diameter of welded part
a – length of external threaded or welded part, mm
S – hexagon

Additional information

Modifications

Modifications of Sleeves, Bosses, and Fittings
Model Outer Diameter D, mm Inner Diameter d, mm Type Material Length L, mm
60 80 120 160 200 250 320 400 500
GZ-001 GZ-101 8 5 Welded 12X18H10T 110 117 129 147 168 189 210 234 264
10 7 Welded 113 119 131 152 172 191 213 240 267
GZ-002 GZ-102 8 5 Welded 12X18H10T 122 129 140 160 180 201 222 246 276
Turned 232 255 278 319 361 400 444 494 552
10 7 Welded 12X18H10T 124 131 143 163 183 204 226 250 278
Turned 250 262 285 326 365 407 450 499 558
GZ-003 GZ-103 8 5 Welded 12X18H10T 154 168 186 204 220 240 262 283 312
10 7 Welded 12X18H10T 158 173 191 210 230 249 270 295 325
Turned 317 347 384 421 459 -
12 8 Welded 12X18H10T 165 179 197 197 217 254 276 301 330
Turned 327 355 394 431 469 -
14 9 Welded 12X18H10T 173 188 206 226 244 263 285 295 325
Turned 347 375 413 450 487 -
16 11 Welded 12X18H10T 189 202 220 240 259 277 299 310 339
Turned 377 404 442 491 517 -
GZ-004 GZ-104 13 11/9 Turned 12X18H10T 755 809 881 958 -
15 13/11 755 809 881 958 -
B-001 30 11 Turned St3 52(L=30) 73(L=60)
30 11 Turned 12X18H10T 94(L=30) 124(L=60)
B-002 30 11 Turned St3 67(L=30) 88(L=60)
30 11 Turned 12X18H10T 109(L=30) 139(L=60)
B-003 30 11 Turned St3 82(L=30) 103(L=60)
30 11 Turned 12X18H10T 124(L=30) 154(L=60)
B-004 12 7 Turned 12X18H10T 107(L=30) 124(L=60)
15 8 Turned 12X18H10T 116(L=30) 133(L=60)
B-005 12 7 Turned 12X18H10T 107(L=30) 124 (L=60)
15 8 Turned 12X18H10T 116(L=30) 133(L=60)
SP-01 (Movable Fitting) Turned 12X18H10T 139(M20x1.5) 169(M27x2)

Additional information

Download

Sleeves Passport

FAQ

Questions and answers

What are the protective sleeves GZ-001 intended for?
Protective sleeves GZ-001 are designed for installing resistance thermometers, thermocouples, glass thermometers, bimetallic sensors, and pressure gauges to protect them from mechanical and chemical effects of the working environment and dynamic loads.
Under what conditions can the GZ-001 sleeves be used?
Thermometric sleeves GZ-001 can be mounted in pressure vessels, steam boilers, pipelines, reservoirs, and other objects using threaded or welded connections.
What material are the GZ-001 sleeves made of?
The sleeves are made of steel 12X18H10T (AISI 321), but upon customer's request, manufacturing from other steel grades such as AISI 304, AISI 316L, AISI 316Ti, AISI 430, and 12X1MF is possible depending on operating conditions.
What modifications of the GZ-001 sleeves exist and which sensors are they compatible with?
Modifications of the GZ-001 sleeves have different diameters, lengths, and types of construction (welded or turned). The choice of a particular modification depends on sensor models (suitable for models 001 and 102) and technical mounting requirements, such as external and internal diameter and the length of the mounting section.
Do the GZ-001 sleeves undergo hermeticity testing and what is their rated working pressure?
Thermometric sleeves GZ-001 are hermetic and undergo acceptance tests with test pressure. They are operated at working pressures according to GOST 3634-79, ensuring their reliability and long-term operation.
