Protective Sleeves GZ-002
- Price
- 336 UAH
- Availability
- In stock

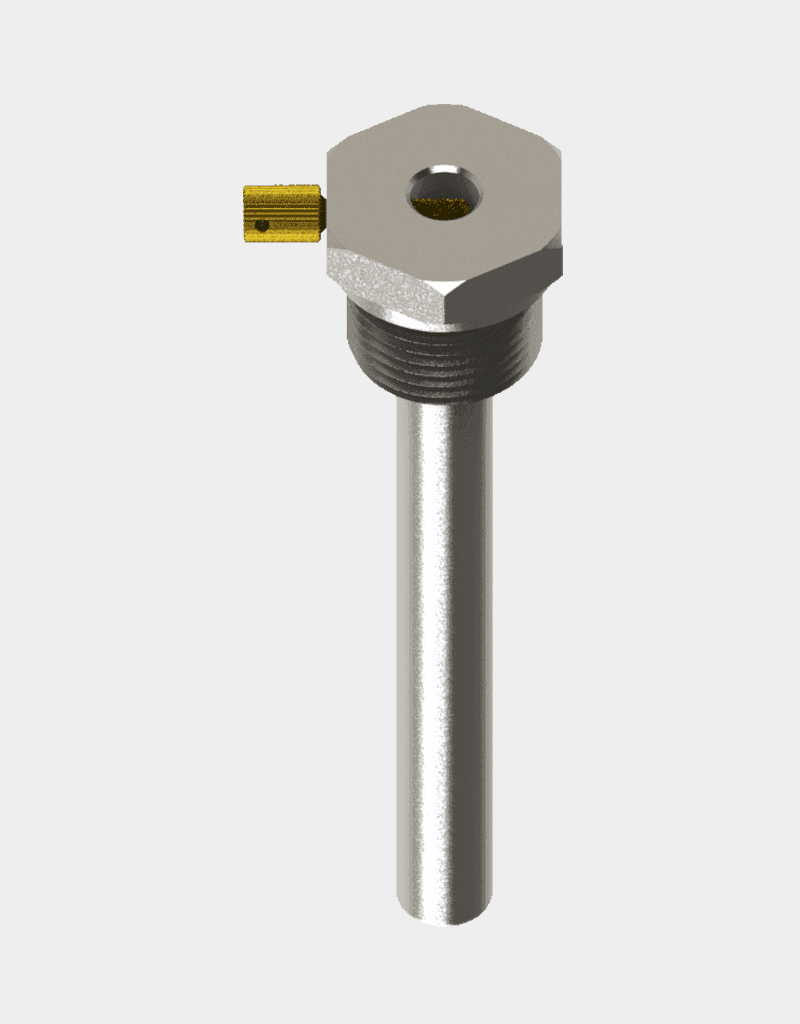

Protective sleeves (mounting, thermometric) GZ-002 are designed for installation of resistance thermometers (RT), thermoelectric converters (TC) (thermocouples), glass thermometers, bimetallic sensors, and pressure gauges. Protective sleeves protect these devices from mechanical and chemical influence of the working medium and increased dynamic loads. Installation of temperature sensors using GZ-002 sleeves significantly extends the service life of these sensors. Thermometric protective sleeves can be mounted... Read more Protective Sleeves GZ-002
Protective sleeves (mounting, thermometric) GZ-002 are designed for the installation of resistance thermometers (RT), thermoelectric converters (TC) (thermocouples), glass thermometers, bimetallic sensors, and pressure gauges. Protective sleeves protect these instruments from mechanical and chemical effects of the working medium and increased dynamic loads.
Installing temperature sensors using GZ-002 sleeves significantly extends the service life of these sensors. Thermometric protective sleeves can be mounted in pressure vessels, steam boilers, pipelines, tanks, and other facilities. Sleeve installation is performed using threaded or welded connections.
Thermometric sleeves are manufactured with mounting threads: metric according to ISO 724, cylindrical pipe BSPP / ISO 228-1, and conical inch NPT / ANSI-ASME B1.20.1. Mounting threads can be made according to other standards upon Customer request.
GZ-002 sleeves are intended for temperature sensors of models 001 and 102.
Protective (mounting, thermometric) sleeves GZ-002 are made of steel grade 12Х18Н10Т per EN 10088. Upon Customer request, thermometric sleeves can be produced from other steels.
AISI 321 12Х18Н10Т 08Х18Н10Т heat-resistant, corrosion and heat resistant austenitic steel. Has high strength and durability. Used at temperatures up to 600 °C, and in highly aggressive environments up to 350 °C.
AISI 304 08Х18Н10 heat-resistant, corrosion resistant austenitic steel. Used at temperatures up to 400 °C in medium active environments.
AISI 316L 03Х17Н14М3 corrosion resistant austenitic steel. Used at temperatures up to 450 °C in most aggressive environments.
AISI 316Ti 10Х17Н13М2Т corrosion resistant austenitic steel. Used at temperatures up to 600 °C in highly aggressive environments.
AISI 430 12Х17 heat-resistant, corrosion resistant ferritic steel. Used at temperatures up to 400 °C in mildly aggressive environments.
12Х1МФ heat-resistant, resistant to prolonged high temperature exposure, pearlitic steel. Used at temperatures up to 600 °C.
Mounting sleeves GZ-002 should be operated at flow velocities and pressures not exceeding the values specified in tables for particular sleeve modifications. Maximum flow velocity and rated medium pressure are determined considering the static strength condition of the sleeve.
Thermometric sleeves of all modifications are hermetic. They undergo acceptance tests with test pressure Rpr and must be operated at working pressure Rp according to GOST 3634-79.
The conditional designation of protective (mounting, thermometric) sleeves DPP-GZ-002 according to TUU 26.5-32195027-008 is valid until 2016.
REGMIK DPP-GZ-002

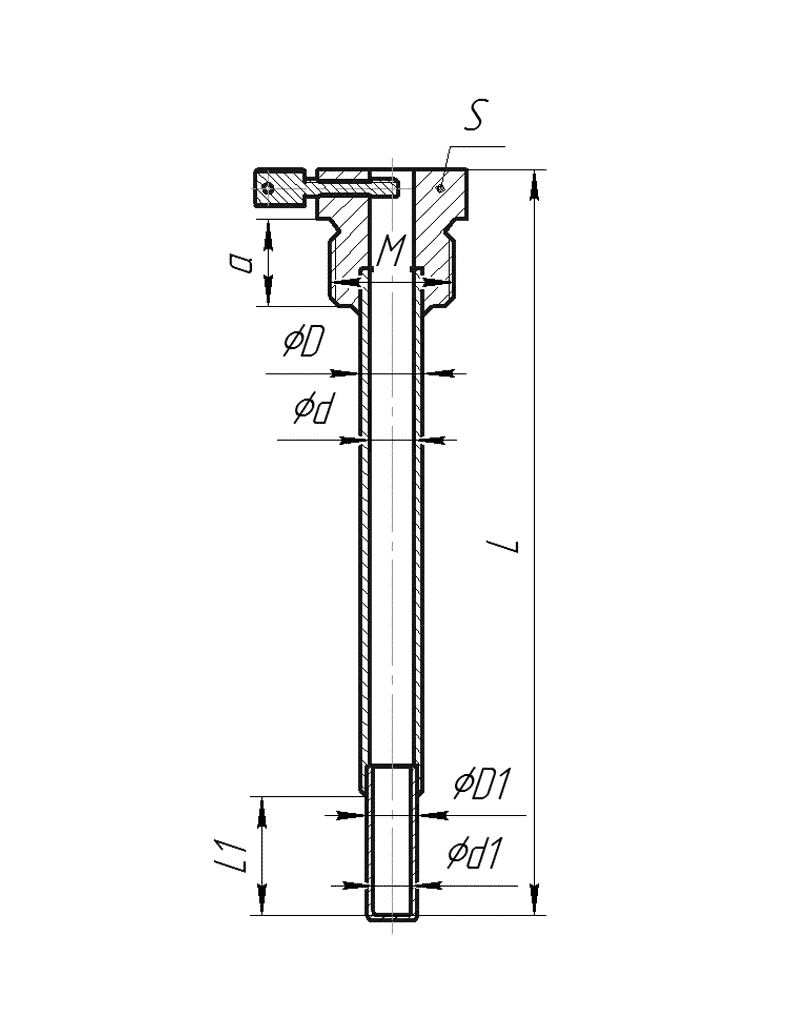

D, D1 - outer diameter of the mounting part, mm
d, d1 - inner diameter of the mounting part, mm
L, L1 - length of the mounting part, mm
M - type of external thread or diameter of welded part
a - length of external threaded or welded part, mm
S - hexagon size
