Protective Sleeves GZ-104

Price
2,210 UAH
Availability
In stock
Sleeves, bosses, fittings

Protective sleeves (installation, thermometric) GZ-104 are designed for mounting resistance thermometers (RTD), thermoelectric converters (TC) (thermocouples), glass thermometers, bimetallic sensors, and pressure gauges. Protective sleeves shield these devices from mechanical and chemical effects of the working environment and increased dynamic loads. Mounting temperature sensors using GZ-104 sleeves significantly extends their service life. Thermometric protective sleeves can be mounted... Read more GZ-104 Sleeves

Back to catalog

Specifications

Description

Protective sleeves (installation, thermometric) GZ-104 are designed for mounting resistance thermometers (RTD), thermoelectric converters (TC) (thermocouples), glass thermometers, bimetallic sensors, and pressure gauges. Protective sleeves shield these instruments from mechanical and chemical effects of the working environment and increased dynamic loads.

Mounting temperature sensors using GZ-104 sleeves significantly extends the service life of these sensors. Thermometric protective sleeves can be installed in pressure vessels, steam boilers, pipelines, tanks, and other facilities. Sleeve installation is performed using threaded or welded connections.

Thermometric sleeves are manufactured with mounting threads: metric per ISO 724, cylindrical pipe per BSPP / ISO 228-1, and tapered inch per NPT / ANSI-ASME B1.20.1. Mounting threads can be custom made according to other standards upon Customer request.

Sleeves GZ-104 and GZ-004 are intended for temperature sensors models 002, 003, and 001.

Protective sleeves (installation, thermometric) GZ-104 are made of steel 12Х18Н10Т according to EN 10088. Upon Customer request, thermometric sleeves can be produced from other steels.

AISI 321 12Х18Н10Т 08Х18Н10Т – heat-resistant, corrosion and heat-resistant austenitic steel. It has high strength and durability. Used at temperatures up to 600 °C, and in aggressive environments up to 350 °C.
AISI 304 08Х18Н10 – heat-resistant, corrosion-resistant austenitic steel. Used at temperatures up to 400 °C in moderately aggressive environments.
AISI 316L 03Х17Н14М3 – corrosion-resistant austenitic steel. Used at temperatures up to 450 °C in most aggressive environments.
AISI 316Ti 10Х17Н13М2Т – corrosion-resistant austenitic steel. Used at temperatures up to 600 °C in highly aggressive environments.
AISI 430 12Х17 – heat-resistant, corrosion-resistant ferritic steel. Used at temperatures up to 400 °C in mildly aggressive environments.
12Х1МФ – heat-resistant, resistant to prolonged high temperatures pearlitic steel. Used at temperatures up to 600 °C.

Installation sleeves GZ-104 should be operated at flow velocities and pressures not exceeding the values specified in the tables for specific sleeve modifications. The maximum flow velocity and nominal pressure of the medium are defined based on ensuring the static strength of the sleeve.

Thermometric sleeves of all modifications are hermetic. They are subject to acceptance testing with test pressure Ptest and must be operated at working pressure Pr according to GOST 3634-79.

Conditional designation of Protective Sleeves (installation, thermometric) DPP-GZ-102 according to TUU 26.5-32195027-008, valid until 2016.

REGMIK DPP-GZ-104

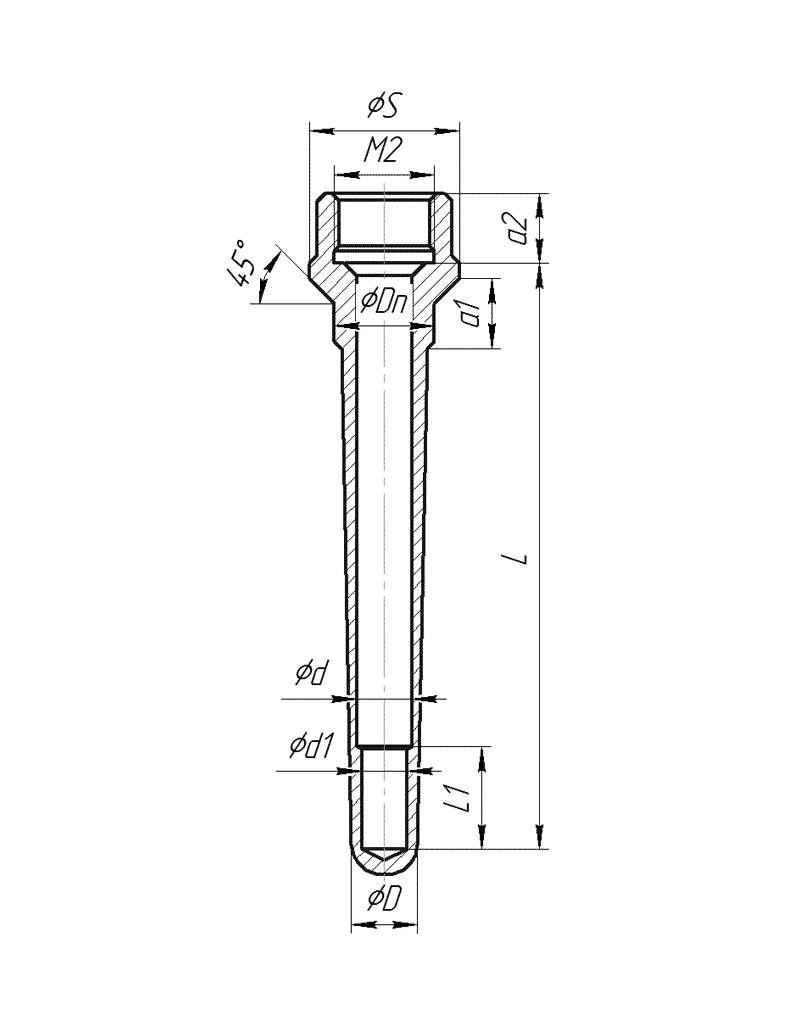

D - outer diameter of the mounting part, mm
d, d1 - inner diameter of the mounting part, mm
L, L1 - length of the mounting part, mm
M1 - type of external thread or diameter of the welded part
M2 - type of internal thread
a1 - length of external thread or welded part, mm
a2 - length of internal threaded part, mm
S - hexagon size

Additional information

Modifications

Modifications of Sleeves, Bushings and Nipples
Model Outer Diameter D, mm Inner Diameter d, mm Execution Material Length L, mm
60 80 120 160 200 250 320 400 500
GZ-001 GZ-101 8 5 Welded 12Х18Н10Т 110 117 129 147 168 189 210 234 264
10 7 Welded 113 119 131 152 172 191 213 240 267
GZ-002 GZ-102 8 5 Welded 12Х18Н10Т 122 129 140 160 180 201 222 246 276
Turned 232 255 278 319 361 400 444 494 552
10 7 Welded 12Х18Н10Т 124 131 143 163 183 204 226 250 278
Turned 250 262 285 326 365 407 450 499 558
GZ-003 GZ-103 8 5 Welded 12Х18Н10Т 154 168 186 204 220 240 262 283 312
10 7 Welded 12Х18Н10Т 158 173 191 210 230 249 270 295 325
Turned 317 347 384 421 459 -
12 8 Welded 12Х18Н10Т 165 179 197 197 217 254 276 301 330
Turned 327 355 394 431 469 -
14 9 Welded 12Х18Н10Т 173 188 206 226 244 263 285 295 325
Turned 347 375 413 450 487 -
16 11 Welded 12Х18Н10Т 189 202 220 240 259 277 299 310 339
Turned 377 404 442 491 517 -
GZ-004 GZ-104 13 11/9 Turned 12Х18Н10Т 755 809 881 958 -
15 13/11 755 809 881 958 -
B-001 30 11 Turned St3 52(L=30) 73(L=60)
30 11 Turned 12Х18Н10Т 94(L=30) 124(L=60)
B-002 30 11 Turned St3 67(L=30) 88(L=60)
30 11 Turned 12Х18Н10Т 109(L=30) 139(L=60)
B-003 30 11 Turned St3 82(L=30) 103(L=60)
30 11 Turned 12Х18Н10Т 124(L=30) 154(L=60)
B-004 12 7 Turned 12Х18Н10Т 107(L=30) 124(L=60)
15 8 Turned 12Х18Н10Т 116(L=30) 133(L=60)
B-005 12 7 Turned 12Х18Н10Т 107(L=30) 124 (L=60)
15 8 Turned 12Х18Н10Т 116(L=30) 133(L=60)
SP-01 (Movable Nipple) Turned 12Х18Н10Т 139(M20x1.5) 169(M27x2)

Additional information

Download

Certificate for Sleeves

FAQ

Questions and answers

What are the protective sleeves GZ-104 meant for?
Protective sleeves GZ-104 are designed for mounting resistance thermometers, thermoelectric converters (thermocouples), glass and bimetallic thermometers, pressure gauges, protecting them from mechanical and chemical effects of the working environment and dynamic loads.
What material are GZ-104 sleeves made from?
Sleeves are made of steel 12Х18Н10Т (analog AISI 321) and can be produced from other steel grades upon customer request. Steel 12Х18Н10Т is heat-resistant and corrosion-resistant, allowing the use of sleeves up to 600 °C under normal conditions and up to 350 °C in aggressive environments.
What types of mounting are provided for GZ-104 sleeves?
GZ-104 sleeves can be mounted using threaded (metric per ISO 724, BSPP or NPT) or welded connections. Threads can be made according to ISO 724, ISO 228-1 (BSPP) or ANSI-ASME B1.20.1 (NPT) standards; also, other standards threads may be produced upon order.
Which sensor models are compatible with GZ-104 sleeves?
GZ-104 sleeves are used together with temperature sensors models 001, 002, and 003. Using sleeves extends the service life of sensors and protects them during operation.
What are the maximum operating conditions for GZ-104 sleeves regarding pressure and flow velocity?
GZ-104 sleeves are designed to operate in environments with pressure and flow velocity not exceeding the values specified in the technical tables for specific sleeve modifications. Maximum working parameters comply with GOST 3634-79 and ensure the static strength of the sleeve.
